DJIDrone battery

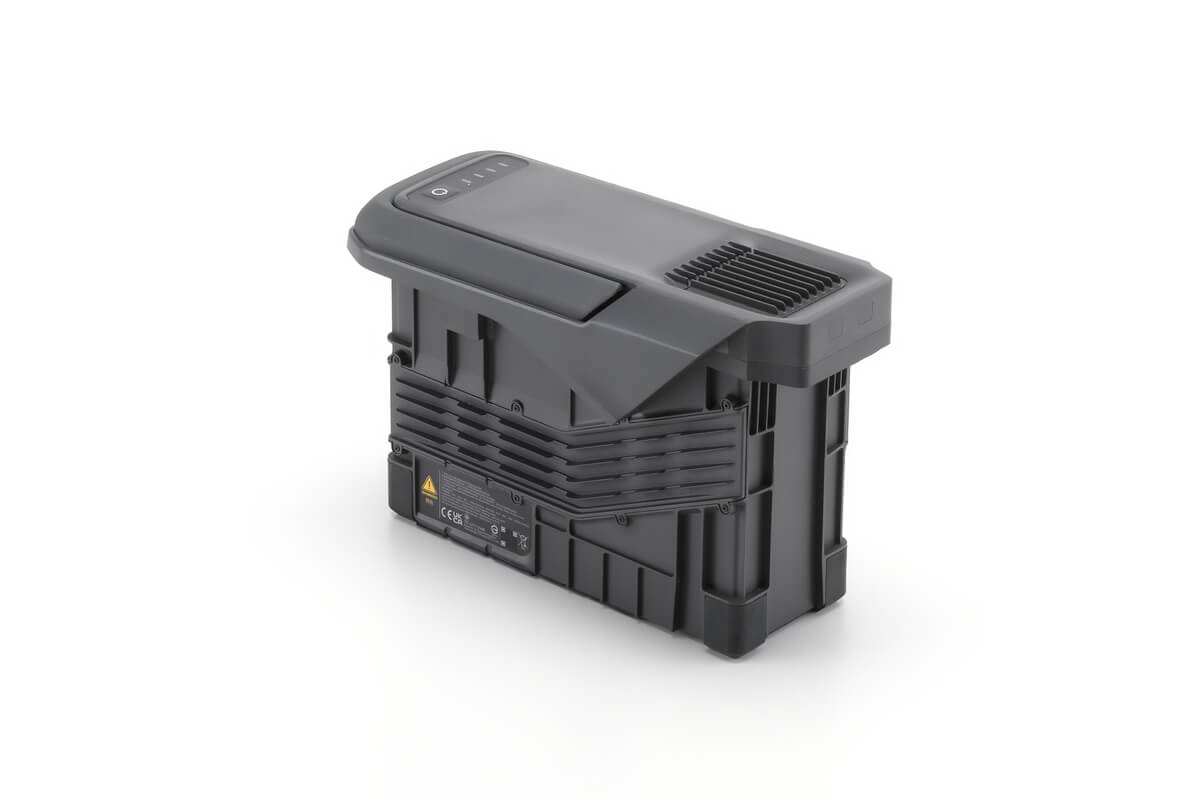

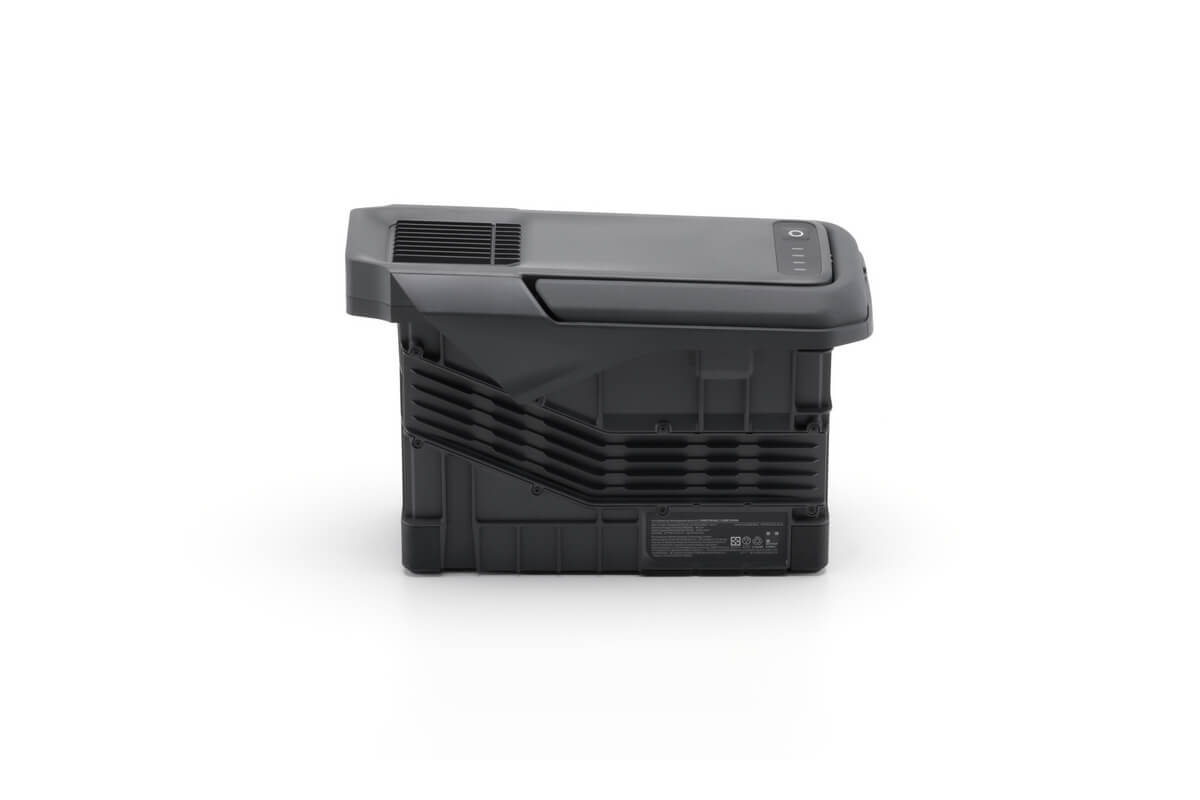

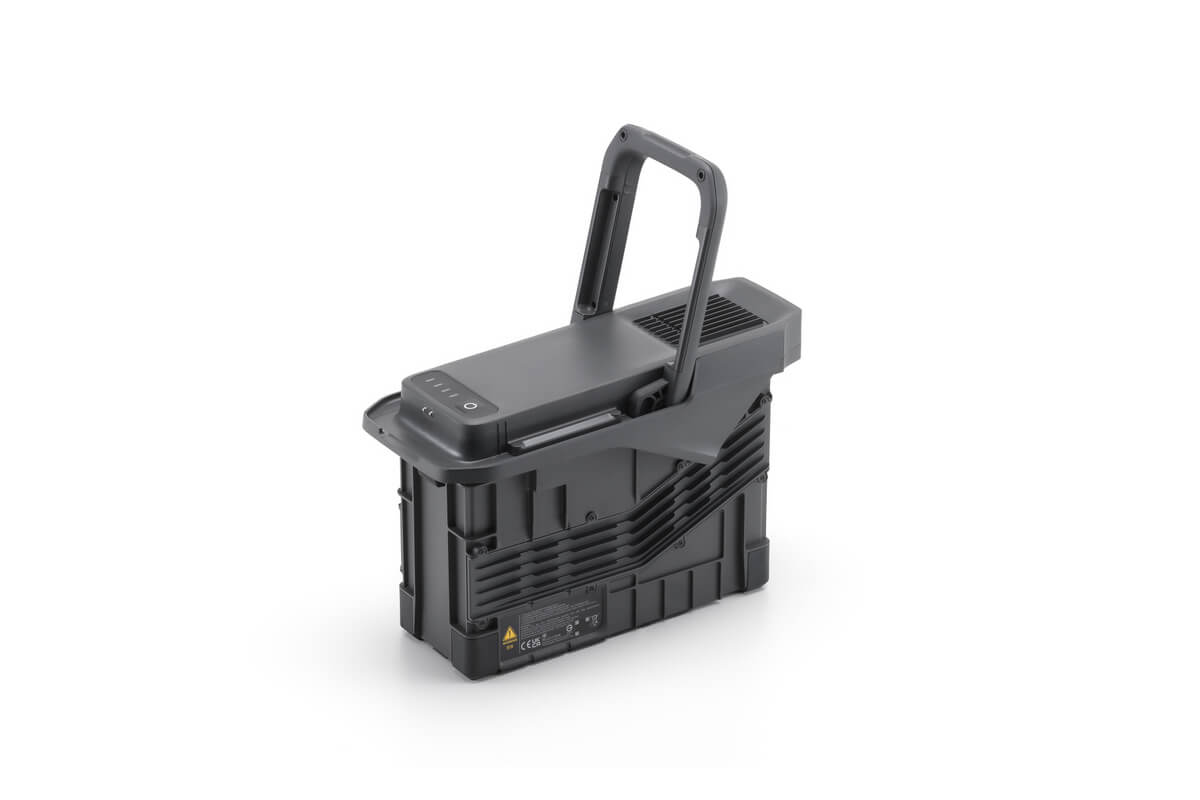

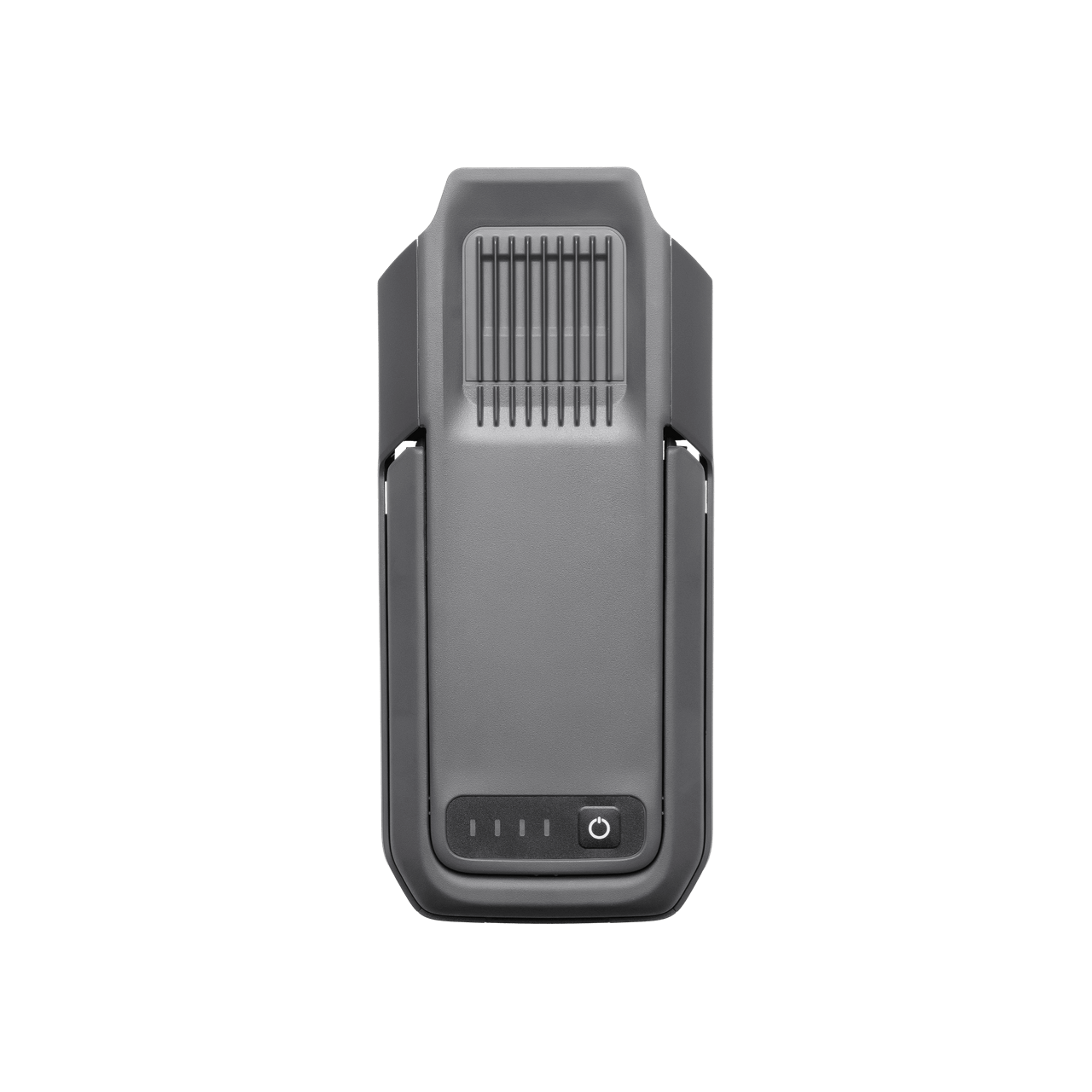

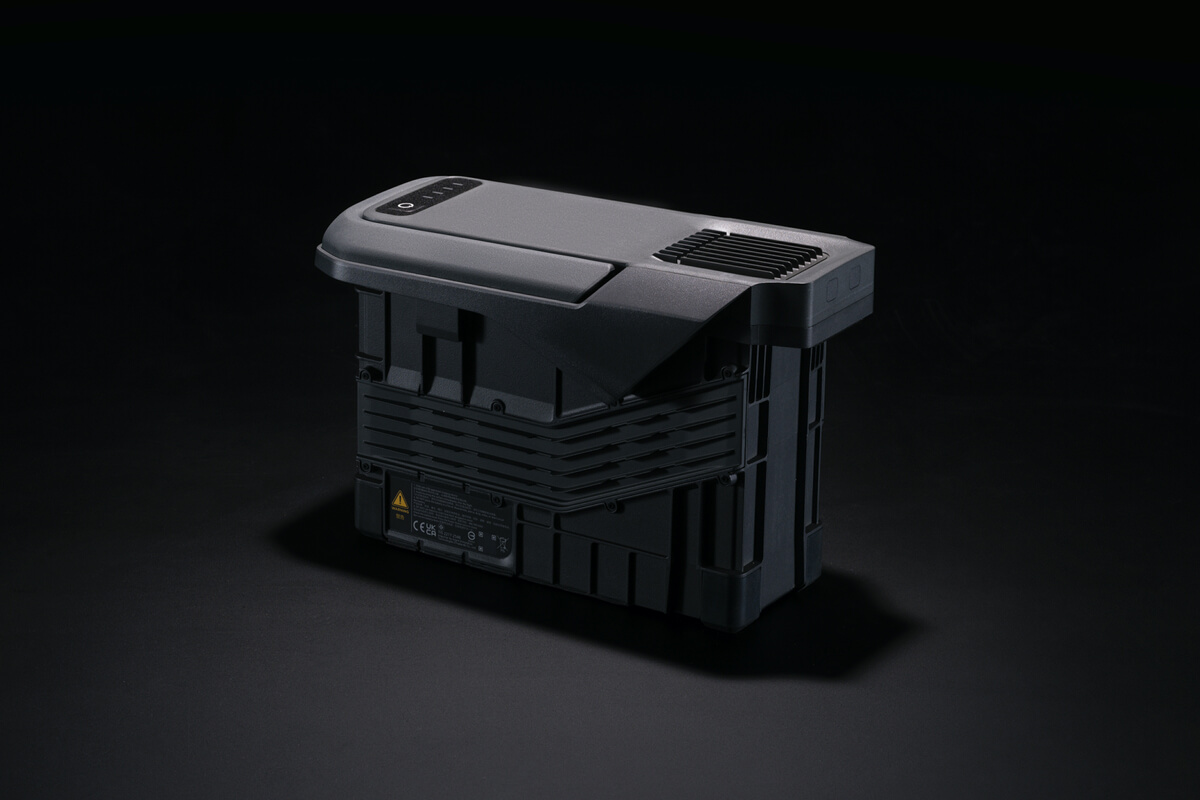

DJI TB100 Intelligent Flight Battery — Matrice 400
An original DJI Li-ion battery for DJI Matrice 400. It has a capacity of 20254 mAh, energy of 977 Wh, and weighs 4720 ± 20 g.
- Official model
- TB100-20254-48.23
- Product type
- Drone battery
Key specifications
- Official model
- TB100-20254-48.23
- Capacity
- 20254 mAh
- Weight
- 4720 ± 20 g
- Nominal voltage
- 48.23 V
AvailabilityAvailable on request
Price on request
Compatibility
Compatibility
- DJI Matrice 400
Product information
Product information
An original DJI Li-ion battery for DJI Matrice 400. It has a capacity of 20254 mAh, energy of 977 Wh, and weighs 4720 ± 20 g.
Technical specifications
Technical specifications
- Official model
- TB100-20254-48.23
- Capacity
- 20254 mAh
- Weight
- 4720 ± 20 g
- Nominal voltage
- 48.23 V
- Maximum charging voltage
- 54.6 V
- Battery type
- Li-ion 13S
- Energy
- 977 Wh
- Discharge rate
- 4C
- Cycle count
- 400 cycles
- Charging temperature
- 5–45 °C
- Operating temperature
- -20° to 75° C (discharging)
- Maximum charging power / rate
- 2C
- Charging time
- 45 min at 220 V / 70 min at 110 V in Fast Charging Mode
- Official flight time
- up to 59 min with Matrice 400 in the specified test configuration
- Low-temperature features
- Self-heating is supported
